Step 16- Installing the door lock

Original ArcadeCab MAME cabinet plans, updated for easier reading on modern computers, tablets and phones. The construction instructions and photos remain from the original build.

Cabinet plan contents
IntroductionWhy build a cabinet?CostToolsMaterialsGame DayStartingCutting the sidesBuilding the BaseAttaching Base/ShelfStand It UpBack BeamsLedger BoardsAdd BackThe Monitor ShelfCastersPatching and SandingPriming and PaintingT-MoldingDrawer ConstructionInstalling the DoorDoor LockWiring Coin DoorSpeaker AreaMarqueeMonitor BezelAppendixList of BoardsCabinet DimensionsOriginal DesignOriginal PlansMAME


I purchased a 1-1/8" Utility Cam lock from Lowes, good for up to 3/4" wood.  I determined the where on the door I needed the lock, then drilled a 3/4" hole with a spade bit.  It made a beautiful hole.  I then followed the instructions and installed the lock, using the 90 degree piece.

For the lock to catch on something and stay, I installed an L bracket just inside the door, on the cabinet wall.

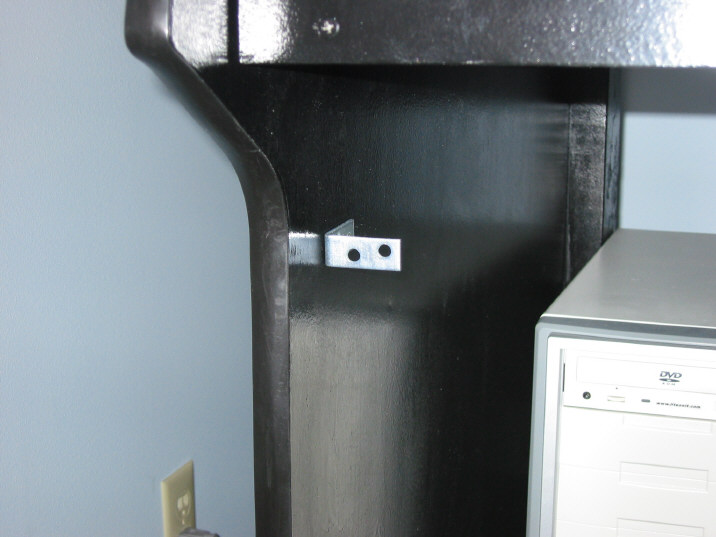

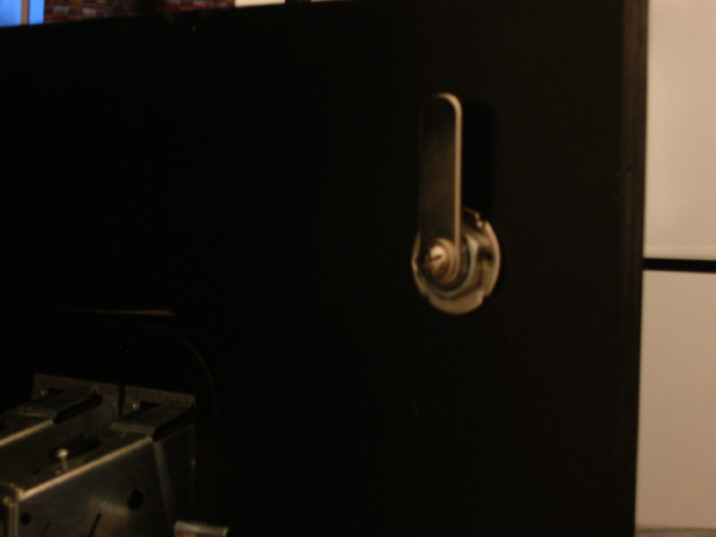

The hole is drilled.The lock, from the inside of the cabinet.The L bracket used for securing the door.
