Tools

Original ArcadeCab MAME cabinet plans, updated for easier reading on modern computers, tablets and phones. The construction instructions and photos remain from the original build.

Cabinet plan contents



Affiliate disclosure: As an Amazon Associate, ArcadeCab earns from qualifying purchases. Some links on this page are affiliate links.

You will need a table saw (or circular saw), drill with screwdriver bits, jig saw, (miter saw, if you have one available), router with a 1/16" slot cutting bit, and at least one pair of clamps. A pair of sawhorses is also greatly recommended. You will be generating a lot of dust so, if you construct it in your garage like I did, dont plan to clean your house until after you complete your cabinet.  In addition, make sure you have safety glasses.

If you have access to an orbital sander, get it.  I did not need one but you may.

[Update- I purchased a table saw to help with later cabinets and would recommend it, if your budget allows.  This is a low-end model that Lowes sells for less than $180]

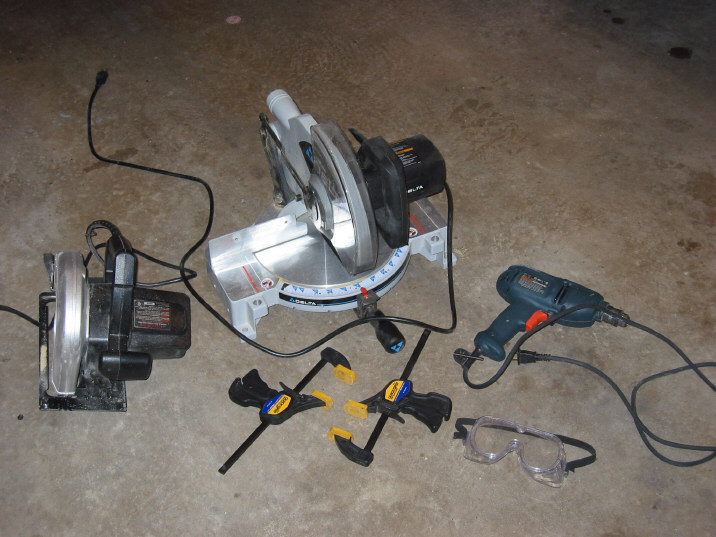

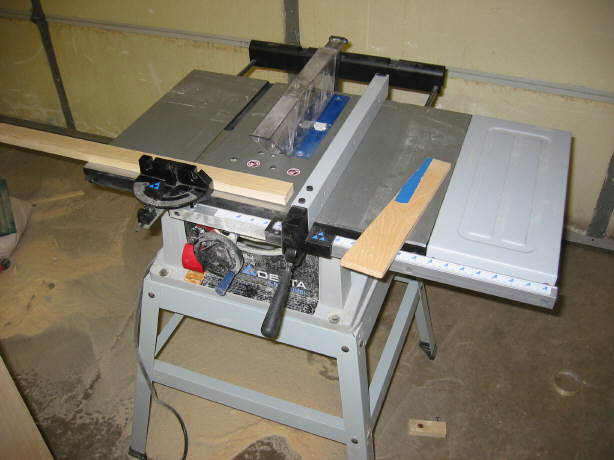

Main tools, minus the jig saw,who refused to be photographed.My new table saw.
